My Elio Alternate Project Is Underway.

Mark BEX

Elio Addict
Joined
Feb 2, 2021
Messages
1,189
Reaction score
4,738
Location
Australia
Sometimes you have to go back a step or 2 ...

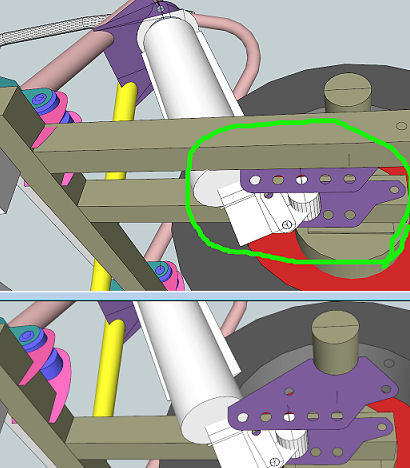

Looking at how to mount the rear strut to the swingarm proper, I realised I can make the existing joining brackets as the lower strut mounts as well.

So have to cut the axle off the swingarm, laser cut these new purple brackets, and stick it back together!

I have multiple holes for testing later, so I can change the motion ratio to suit (make the suspension softer or harder).

swingarm strut 3.jpg


84mpg

Elio Addict
Joined
Aug 31, 2014
Messages
776
Reaction score
1,461
Location
BIrmingham, Alabama
Sometimes you have to go back a step or 2 ...

Looking at how to mount the rear strut to the swingarm proper, I realised I can make the existing joining brackets as the lower strut mounts as well.

So have to cut the axle off the swingarm, laser cut these new purple brackets, and stick it back together!

I have multiple holes for testing later, so I can change the motion ratio to suit (make the suspension softer or harder).

View attachment 24998
Man.... I LOVE this!!! It's definitely worth a step back to get the adjustability! Bravo!


Mark BEX

Elio Addict
Joined
Feb 2, 2021
Messages
1,189
Reaction score
4,738
Location
Australia

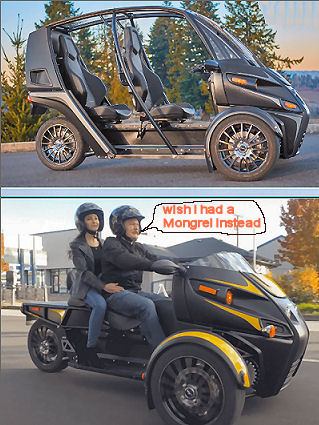

The other day someone mentioned Arcimoto, and here's 2 of their proposed products.

Clearly I can do these as well, though there are some differences:

-Mongrel will be a little bigger overall.
-Mongrel has car type steering wheel and foot pedals rather than typical motorcycle controls.
-Mongrel will have superior side impact protection for the open-cage version.
-Mongrel will be ICE, maybe EV later, Arcimoto is EV.
-Mongrel is positioned at a lower price point.
-Mongrel is better because I design and built it, and my Mum says i I am awesome.

So are these styles of interest to anyone, thoughts? .. and no, it's not detracting me away from my current goal ...



JEBar

Administrator
Staff member
Administrator
Moderator
Joined
Aug 24, 2014
Messages
7,321
Reaction score
18,146
Location
Wake County, NC
Clearly I can do these as well, though there are some differences:

-Mongrel will be a little bigger overall.
-Mongrel has car type steering wheel and foot pedals rather than typical motorcycle controls.
-Mongrel will have superior side impact protection for the open-cage version.
-Mongrel will be ICE, maybe EV later, Arcimoto is EV.
-Mongrel is positioned at a lower price point.
-Mongrel is better because I design and built it, and my Mum says i I am awesome.

So are these styles of interest to anyone, thoughts?
there is no doubt that some folks will be interested .... for all of the above reasons and many more, I'm not one of them .... that said, I'll have to reserve judgement as to the validity of your Mum's opinion ..


Mark BEX

Elio Addict
Joined
Feb 2, 2021
Messages
1,189
Reaction score
4,738
Location
Australia
there is no doubt that some folks will be interested .... for all of the above reasons and many more, I'm not one of them .... that said, I'll have to reserve judgement as to the validity of your Mum's opinion ..

I wasn't trying to sway anyone from the intended 'Elio Alternate', just looking for thoughts is all.

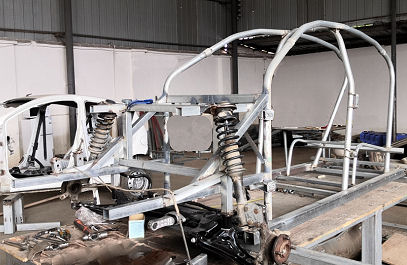

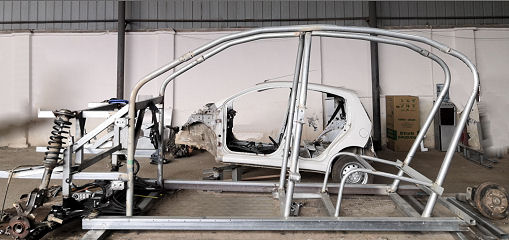

When I look at this, I see an Arcimoto alternate ...

frame 1.jpg


frame 2.jpg


3wheelin

Elio Addict
Joined
May 29, 2015
Messages
1,684
Reaction score
1,929
Location
USA
The other day someone mentioned Arcimoto, and here's 2 of their proposed products.

Clearly I can do these as well, though there are some differences:

-Mongrel will be a little bigger overall.
-Mongrel has car type steering wheel and foot pedals rather than typical motorcycle controls.
-Mongrel will have superior side impact protection for the open-cage version.
-Mongrel will be ICE, maybe EV later, Arcimoto is EV.
-Mongrel is positioned at a lower price point.
-Mongrel is better because I design and built it, and my Mum says i I am awesome.

So are these styles of interest to anyone, thoughts? .. and no, it's not detracting me away from my current goal ...

View attachment 25000
"Mongrel will Be ICE"......count me in bud!


84mpg

Elio Addict
Joined
Aug 31, 2014
Messages
776
Reaction score
1,461
Location
BIrmingham, Alabama
Anyone that buys a FUV (or Can-Am) better ride it like they're on a motorcycle, because they're not much safer. (In some ways, I think motorcycles are safer.) Owners better not have a false sense of safety. They need to have their heads on swivels when riding in traffic –

Personally, if I had the $28,920 to buy a fully maxed out FUV..... I'd get a limited edition Triumph Rocket 3 GT Triple Black (2,458cc and 165hp) and save $4,500. ha!
