The Real P5 ?

[HonestTex]

NSTG8R, you are Awesome...



[NSTG8R]

NSTG8R, you are Awesome...

De nada, my friend!



[Bert]

I have looked around the forum a bit but have not found even a mention of what I have been wondering. Where will the heat/ac unit be stuffed in? A side by side vehicle has plenty of dash to shove a unit in. Not our Elios.

There should be plenty of room I'd think. The heater core and evaporator doesn't have to be very big for an Elio, and the AC evaporator part uses the same vents as the heat, only with a diverting door where AC and heat enter the system.
Just as with most vehicles, part of it can be mounted outside the firewall! IMO



[WilliamH]

Tada!

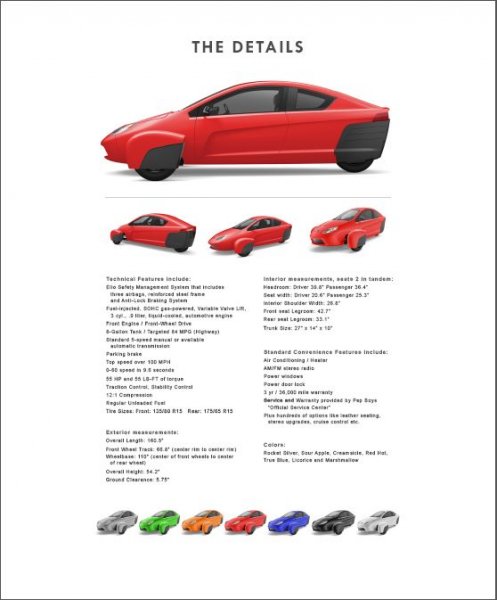

View attachment 7691

Should be able to copy/paste it.

Beat me to it.
Oh well.
I sent mine PM



[NSTG8R]

Beat me to it.
Oh well.
I sent mine PM

Just out of curiosity, what was your method?

I opened the pdf. Used the snipping tool, "saved as" jpg.

Probably more than one way to skin a pdf.



[Wolffarmer]

There should be plenty of room I'd think. The heater core and evaporator doesn't have to be very big for an Elio, and the AC evaporator part uses the same vents as the heat, only with a diverting door where AC and heat enter the system.
Just as with most vehicles, part of it can be mounted outside the firewall! IMO

The heater core and AC evaporator need not be big. I know the heater core in the Kenworth truck I drive is not big at all and it has a large drafty cab to heat. I am thinking it will probably be to the right of the steering column or maybe in the right side panels, down near the right foot? Dang wished these was rolling of the line right now.



[WilliamH]

Just out of curiosity, what was your method?

I opened the pdf. Used the snipping tool, "saved as" jpg.

Probably more than one way to skin a pdf.

I use something called PDFillPDFTools
---> https://www.pdfill.com/pdf_tools_free.html <---
Been using it for a few years.



[HonestTex]

I appreciate the effort from both of you.



[R]

Any ideas about the switches above the accelerator pedal?



[HonestTex]

Any ideas about the switches above the accelerator pedal?

Cut offs for fuel and ignition. Required at the auto show.
