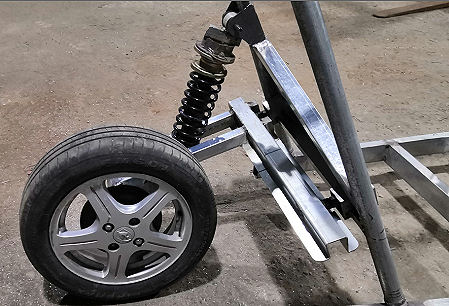

Finished the basic swingarm today, a few minor dimensional modifications are needed, but not to the basic design itself. I'll add a triangulation later, first make sure everything is going to clear everything.
One side is prettier than the other side, so I'll show that side ...
Was a bit of effort to clean the old brackets off the old rear suspension tube, I hope the manufacturer will sell me the tubes raw, if not, I will have to find an alternate tube to weld to the stub axle, just way too much time, noise and cost in cleaning the old brackets off.
I also mucked up something in the height, the 4 holes I lasered were way too low, circled in red below, so I had to hand drill 4 new ones, but that's cool, makes the brackets shorter, stronger and cheaper.
I am so used to laser cutting everything now, it was a shock to drill them by hand, along with grinding off the brackets, it was almost like work!
One side is prettier than the other side, so I'll show that side ...
Was a bit of effort to clean the old brackets off the old rear suspension tube, I hope the manufacturer will sell me the tubes raw, if not, I will have to find an alternate tube to weld to the stub axle, just way too much time, noise and cost in cleaning the old brackets off.
I also mucked up something in the height, the 4 holes I lasered were way too low, circled in red below, so I had to hand drill 4 new ones, but that's cool, makes the brackets shorter, stronger and cheaper.
I am so used to laser cutting everything now, it was a shock to drill them by hand, along with grinding off the brackets, it was almost like work!
