Full Catalog 3 Wheelers Thread

[AriLea]

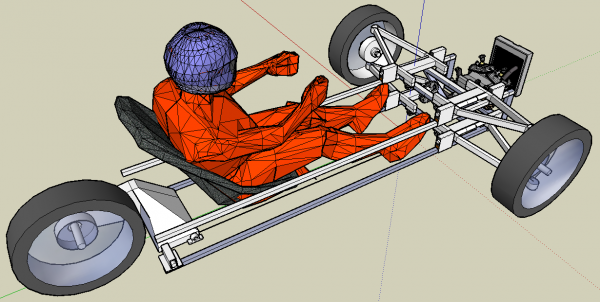

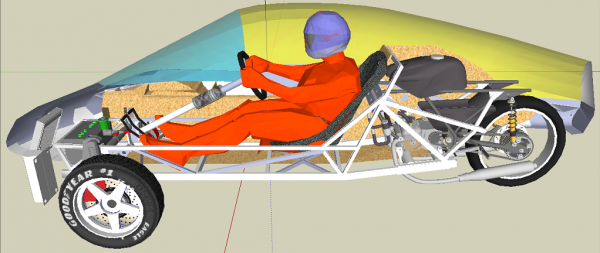

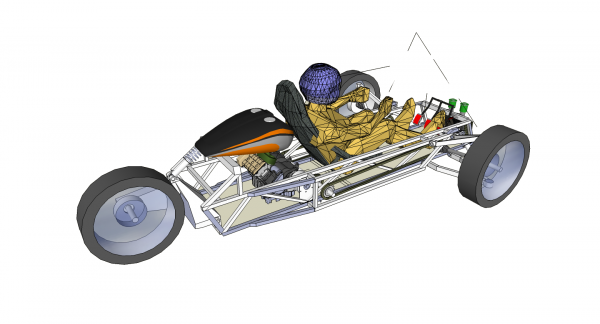

I think you might find this interesting. Here is a depiction of the two major type of tadpole drive trains. But I have a third you probably haven't seen before shown as well.

Not included bellow:
the Morgan type having front engine and rear drive,
no prop powered and
no all wheel drive.



[skygazer6033]

I see no logic in the rear engine front drive configuration. What would be the advantage? Don't think I'd care for a drive chain or belt passing under my right elbow either. I guess a lot of things are possible. But being possible doesn't necessarily mean it's a good idea.



[DAVID BROWER]

THERE ARE MORE TRIKES HERE THAN I KNEW EXISTED .
YOU WOULD THINK THE STREETS WERE COVERED WITH THEM .

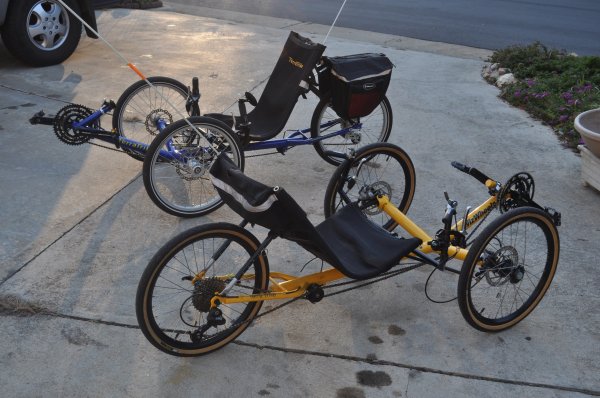

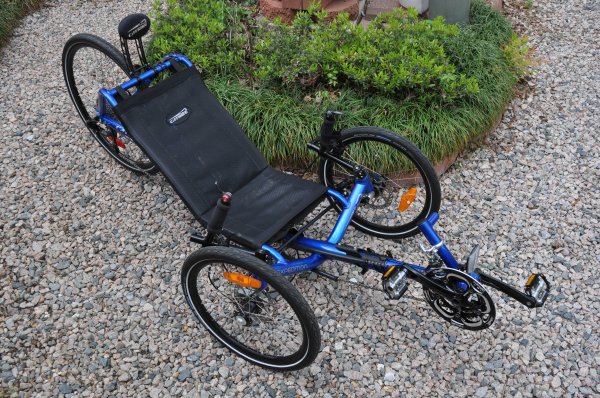

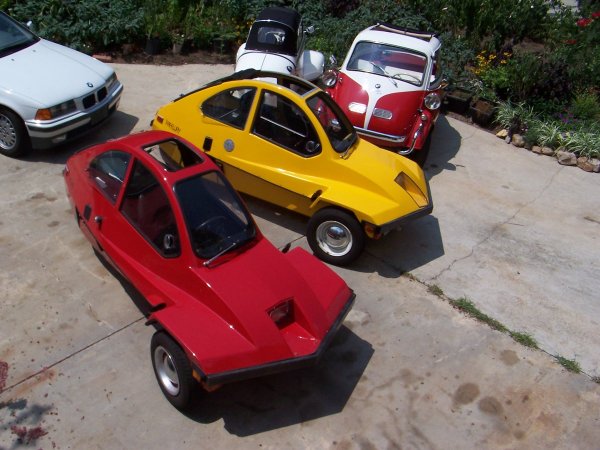

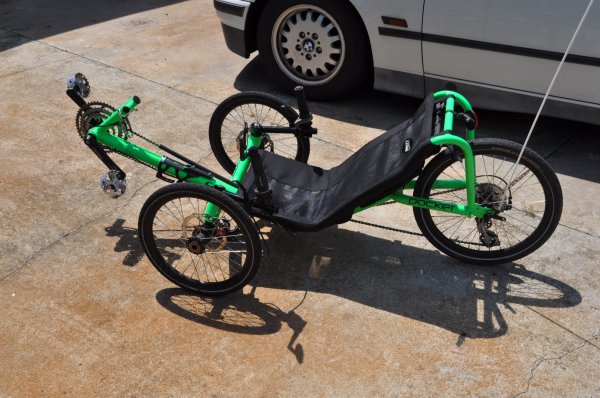

HERE ARE MY TWO FREEWAYS AND SOME OF OUR PEDAL POWER RECUMBENT TRIKES .

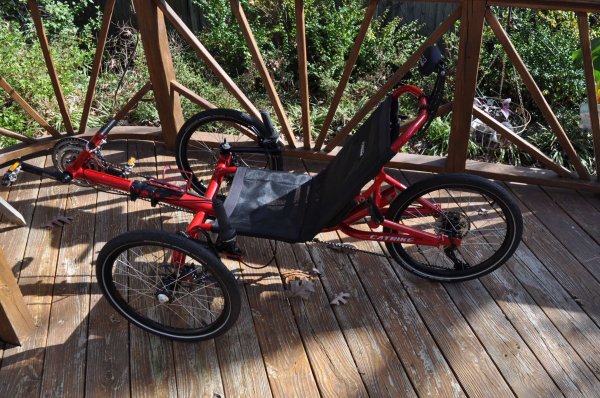

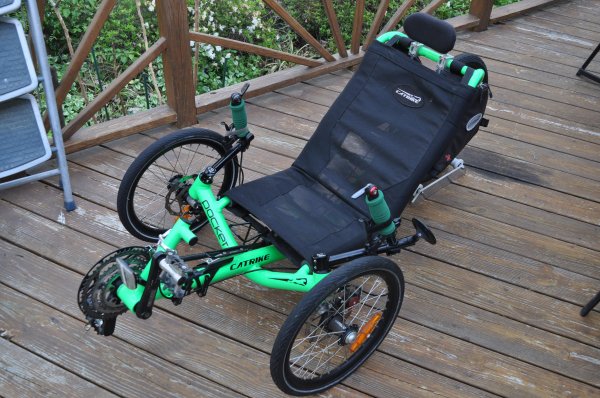

THE BLUE CATRIKE EXPEDITION IS MINE . THE OTHERS ARE ONES I FOUND FOR FAMILY MEMBERS . THEY ALL WERE BOUGHT USED .



[DAVID BROWER]

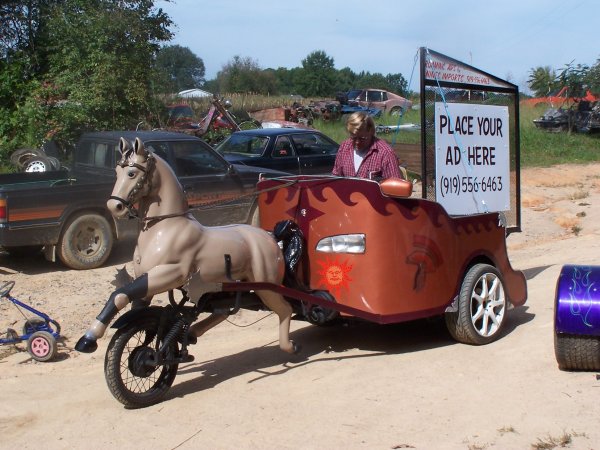

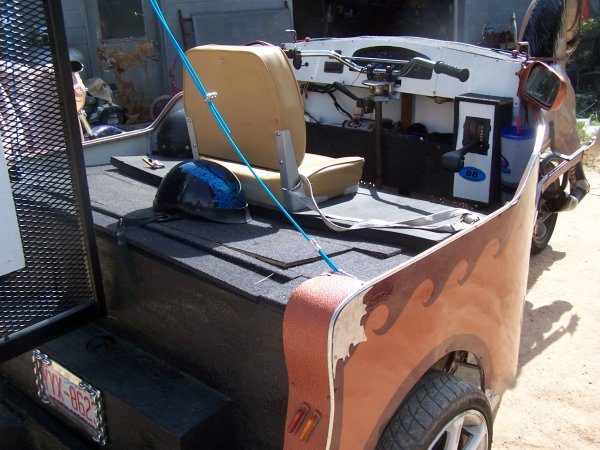

YOU CAN'T HAVE A FULL CATALOG OF THREE WHEELERS
WITHOUT ONE OF TIM NINE'S CREATIONS .
IT HAS A NISSAN SENTRA DRIVETRAIN THAT MAKES IT GO .



[AriLea]

I see no logic in the rear engine front drive configuration. What would be the advantage? Don't think I'd care for a drive chain or belt passing under my right elbow either. I guess a lot of things are possible. But being possible doesn't necessarily mean it's a good idea.

That only works for a very light small displacement engine. But given that the overall weight of this layout is extremely low and the compactness unmatched. It fits inside a nearly perfect raindrop shape.



[DAVID BROWER]

I see no logic in the rear engine front drive configuration. What would be the advantage?
I guess a lot of things are possible. But being possible doesn't necessarily mean it's a good idea.

IT's BEEN DONE & WITH REAR WHEEL STEERING T'BOOT !



[WilliamH]

I see no logic in the rear engine front drive configuration. What would be the advantage?
I guess a lot of things are possible. But being possible doesn't necessarily mean it's a good idea.

IT's BEEN DONE & WITH REAR WHEEL STEERING T'BOOT !

WOW!
A cab forward, Front Wheel Drive, rear engine, rear steering, tadpole.



[skygazer6033]

What is that thing? It looks like front of a C46 fuselage.



[DAVID BROWER]

What is that thing? It looks like front of a C46 fuselage.

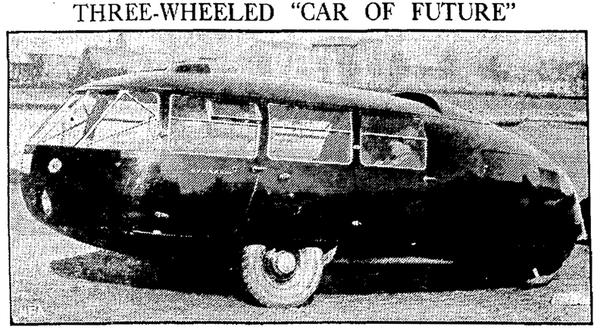

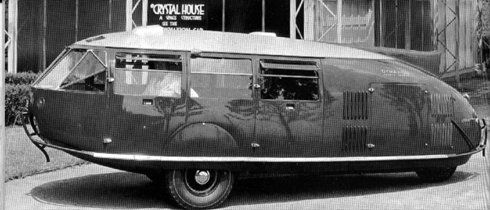

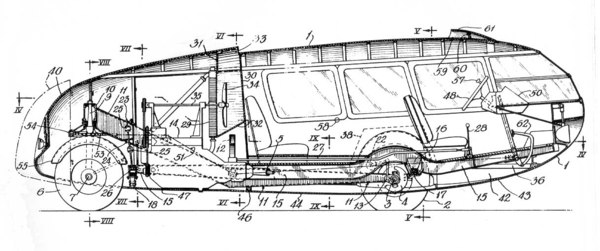

BUCKMINSTER FULLER's DYMAXION OF 1933 !
https://en.wikipedia.org/wiki/Dymaxion_car

IT HAS BEEN RESTORED : http://blog.hemmings.com/index.php/...national-automobile-museum-after-restoration/



[NSTG8R]

The one trike you could ride and not worry about the other cars on the road.
